Production capacity: 500t/h
control method:automatic/manual
>Total power: 155.5kw
Guiyang 400T Stabilized Soil Mixing Plant
Hubei 300T Stabilized Soil Mixing Plant
Jingdezhen 300T Stabilized Soil Mixing Plant
Lushan 600T Stabilized Soil Mixing Plant
Qi County 600T Stabilized Soil Mixing Plant
Shanxi 600T Stabilized Soil Mixing Plant
Project | Maximum productivity | Measurement method | Speed regulation mode | control mode | Quantify precision | Power | Weight | |||
WBZ500 | 500t/h |
Volume measurement Computer measurement |
frequency control Electromagnetic speed regulation |
automatic | Manual |
aggregate |
Powder |
water |
155.5kw |
51t |
Project | Maximum productivity | Measurement method | Speed regulation mode |
WBZ400 | 400t/h |
Volume measurement Computer measurement |
frequency control Electromagnetic speed regulation |
Twin horizontal shaft compulsory no-liner mixer: Shaft end seal adopts world advanced technology.The shaft end support and shaft end seal are completely separated, mud and sand are difficult to enter into the bearing, spare parts replacing is quick and convenient, and maintenance time is extremely short; Large capacity mixer drum, uniform mixing and have a high productivity.

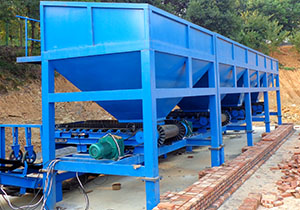

Aggregate batching system consists of aggregate storage bins and belt conveyor;All building block type aggregate storage bins are connected by pin shafts, which is convenient for disassembly, quick installation, and flexible transportation; Aggregate weighing method is adopt weighing sensor, which can measure four kinds of aggregates separately to improve the accuracy of batching.
Belt conveyor is the corrugated sidewall belt conveyor for aggregate and finished material conveying.High-quality seamless vulcanized joint ring tape is with compact structure, stable and reliable operation, not easy to deviate, can effectively improve the service life of the belt, easy to achieve automation and centralized control, and easy to disassemble.
Control system adopt Domestic famous brand electronic accessories, using electromagnetic (frequency conversion) speed regulation method.WBZ500 stabilized cement soil mixing plant adopts computer control method, which automatically or manually modes are all availiable. The operation of production process is simple and easy to master. The operation of the whole machine can be completed by only one person.
Cement silo include three types: Bolted cement silo, Welding cement silo, and Horizontal cement silo.The upper and lower parts of the cement silo are equipped with level meters and dust clean systems;Cement silo designed as bolted type when shipping by sea, silo body were splited by pieces, which will save space and freight after stacking and loading into the container.
There is an axial fan set on top of the pulse dust collector. When the axial fan works, negative pressure is formed inside and outside the dust filter bag. Air passes through the pores of the dust bag and is discharged into the atmosphere through the axial fan. The dust is blocked by the dust bag and attached to the dust bag. The vibrator motor blow off the dust adsorbed on the dust filter bag.
