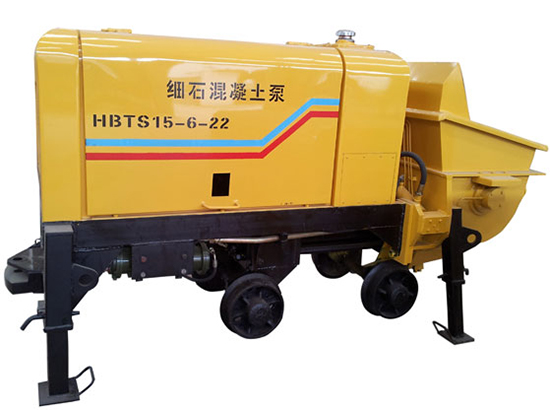

HBTS15-6 concrete pump

At present, the concrete construction of underground mine boreholes, pump rooms, etc., It is mainly constructed by mechanical spray pump. Or manual pouring construction. The main Imperfect for pouring concrete with a mechanical shotcrete pump is: the structure is complex, easily damaged, the construction quality is poor, and the efficiency is low. The main Imperfect for pouring concrete with artificial construction: a lot of racking, labor intensity, long construction period, poor construction quality, and low efficiency. Nowadays, the concrete pump used for building construction has a large volume and a complex structure. High cost. It is not suitable for mines to shake off the construction of a narrow space.
According to this situation, our company developed a special underground concrete pump. Its characteristics: small size. Simple structure. Full hydraulic operation. Easy to use. And high efficiency. Construction is fast. Good quality, very suitable for concrete construction operations in the narrow space under the mine. The company can customize 40, 50, 60, 80 series of mining concrete pumps and coal slurry pump according to customer requirements.
Electronic control system
Electrical control box: Y-△ soft start method is adopted to avoid the impact on the power grid when the power is turned on. Programmable control is adopted to simplify the circuit and the performance is reliable. There is a safety voltage work light, which is convenient for nighttime construction and maintenance.
Remote control: equipped with wired remote control, more convenient operation.
Hydraulic system
Double pump group: The system uses a single pump sequential loop, push system and distribution system in sequence. Scientifically designed to ensure the system's highly active, low consumption.
Suction and return oil filter: Double suction and oil return filter to prevent impurities from entering and ensure the safe and reliable operation of the hydraulic system.
Li forced air cooling system: the main oil system uses forced air cooling, can better adapt to the site environment, ensure that the hydraulic system oil temperature is in the normal operating range.

First, the equipment structure is simple, flexible, solid, easy to operate, downhole to move, adapt to underground operations of various environments.
Second, the concrete is stirred in the barrel body to avoid flying dust. Gai is good for construction work environment. Greatly reduce the pollution and reduce the labor intensity of workers. You effectively improve the quality of construction.
Thirdly, it overcomes problems such as sticking and clogging in material transportation, avoids material waste, saves costs, and saves time and labor.
Fourth, the parts are not easy to damage, durable, reduce the number of maintenance, saving maintenance costs. Equipment Dimensions: 2550 × 1050 × 1250mm The factory meets the needs of users, the production of a variety of specifications models, all kinds of volume concrete pump equipment, welcome users to negotiate business.
