Device model: PLHZS35-PLHZS50
Production capacity: ≤20m3/h~≤50m3/h
The batching and stirring integration is a new type of batching plant equipment that integrates batching and stirring. It occupies a small area, has high production efficiency, and does not require foundation. It not only reduces the initial investment cost of customers, but also can be transferred at multiple construction sites at will. Using a fully automated system, only one person can operate it, which minimizes the investment in human resource costs for customers. It can also have different output options according to different needs of customers. You are welcome to click the link below for consultation.
The mixer has reasonable structure, good mixing quality, short mixing time, energy saving and low noise, and long service life of wearing parts, which can be mixed and suitable for mixing standard concrete.
We provide two weighing systems, integral weighing and individual weighing, to meet the needs of different customers. The precise weighing system ensures the ratio of high-quality concrete.
We normally provide batching machines from 1 bin to 5 bins, and we can also configure the appropriate number of bins according to the needs of customers. The structure is reasonable, the weighing accuracy is high, the conveying is stable.

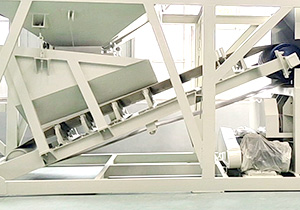

It adopts V-shaped belt, which is not easy to leak materials, and two hoppers for aggregates, which occupies less space, saves land resources. It is easy to realize automation and centralized control, and it is very convenient to disassemble and assemble.
It adopts arch breaking device and dust removal system, which has the characteristics of waterproof, moisture-proof and cement loss prevention.
It has three control systems of intelligent automatic, simple automatic and semi-automatic, which can be customized according to customer needs.
|project||Theoretical productivity||Feed capacity||Output capacity||Mixer model||Aggregate bin volume||Working cycle time||Overall weight||Dimensions(m)|
|PLHZS35||20m3/h||1200L||750L||JS750||3.5 cubic meters||72（S）||6.8t||7.5X2.8X3.1|
|project||Theoretical productivity||Feed capacity||Output capacity||Mixer model|
Application Ranges:precast concrete
Application Ranges:construction of highway
Application Ranges:The main machine is JS2000 twin-shaft forced concrete mixer, concrete batching machine uses PLD3200 type, other equipments including belt conveyor, screw conveyor, cement silo, control room and so on.
