HOME > PRODUCTS > Dry mortar mixing station

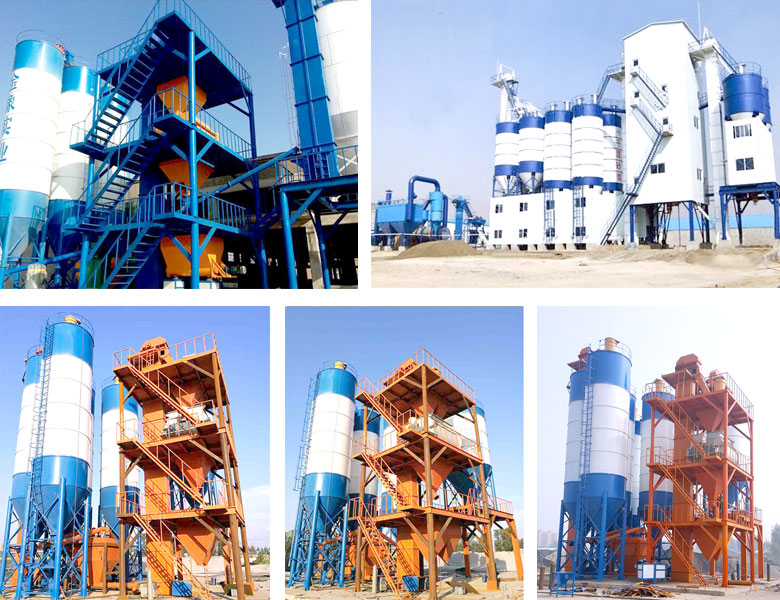

100 thousand ton dry mortar equipement

Field of application: The automatic dry mortar equipment import European advanced design concepts. The tank adopts tower layout. The management system is embedded with the latest modular management technology so the ...
WhatsApp:0086-18437125333
Equipment introduction
The supporting drying equipment adopts the new European version of the three-pass high-efficiency drying machine, At the same time effectively increases the unit production capacity and site utilization, greatly reducing unit energy consumption and achieving green energy-saving production.
Based on the needs of equipment operation, the sand screening system is accurately divided into two stages: bottom coarse screening and top fine screening. The fine screening part is cleverly placed on the top of the finished sand bin, and the finished sand after the fine screening enters different sand bins according to the size of the granularity to prepare for production. This design not only improves the rationality and scientific operation of the equipment, but also effectively improves the land utilization rate at the production site.

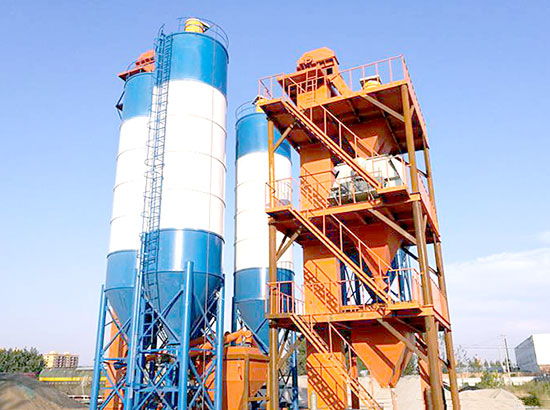

100 thousand ton dry mortar equipement
In terms of batching, the equipment abandons the traditional surface batching model and adopts the top dispensing mode of the tower layout, which greatly reduces the material proportioning and delivery time, improves the production efficiency, and reduces the material cost.
The mixing system uses 4cube large-capacity two-axis high-efficiency gravityless mixer with short mixing time, high mixing accuracy, and mixing rate of 3-5 minutes. At the same time of efficient production  ensure the practical effect of the finished mortar is flawless.
Based on the common automatic packaging machine, the equipment is also equipped with an efficient bulk loading machine. This system can automatically carry out bulk operations on tank cars of 4 meters or less in size, meeting the requirements of bulk mortar in construction sites.
Full set of equipment is controlled by PLC automatic control system. The degree of automation management has reached the domestic advanced level.
Technical Parameters
project Theoretical yield(t/h) Annual output(T/300day/24h) Host model Host power(KW) Full volume(m³) Loading coefficient
100 thousand ton dry mortar equipement 10 100 thousand wz-2c 18.5 2 0.4-0.6
project Theoretical yield(t/h) Annual output(T/300day/24h) Host model
100 thousand ton dry mortar equipement 10 100 thousand wz-2c
Product advantages
1.This machine is developed based on the essence of the technology and new generations owith new models. It has automatic feeding, pneumatic discharge, Bucket wall no accumulating block, no dead corner.
2.Fast mixing, only 8 minutes per mix
3.Small area, reasonable structure, simple operation, high production efficiency, no dust, power make up reasonale.
4.Reasonable configuration; Annual output about 20000-30000 tons of dry powder mortar production line, Usually need 4-6 material tank, two of  large tanks for loading bulk cement and fly ash, the rest small tanks for Put light calcium, heavy calcium, sand, small materials and so on.
5.Bulk cement and fly ash into the tank do not need lifting equipment, Enter by the pump truck. The clever material distribution system supports a bucket elevator distribution job, thereby avoiding waste of resources.
6.The measuring system with the cooperation of the metering screw, import the raw materials into the metering warehouse,date feedback by sensors to realize raw material measuring. The metered material is guided into the main bucket lifter by screw conveyor and lifted to the upper part of the mixer to be mixed.
7.The transfer bin is a pneumatically open door, the material to be mixed can be quickly put into a gravityless mixer to achieve continuous production of dry mortar.
