YHZS100 mobile concrete mixing plant is a new type of mobile concrete mixing plant that integrates feeding, weighing, lifting, and stirring into one, ready to go, and stop-and-use. The entire production process will focus on the feeding, weighing, stirring and other processes of concrete production on a trailer unit; the man-machine interface is simple and clear, the work is stable and reliable, applicable to all kinds of harsh environments; the whole design meets the environmental protection requirements , excellent mobile performance; use of two-shaft forced mixer, continuous working ability, stirring evenly and quickly, and mobile and installation is very fast, suitable for short construction period, construction line length and the need for frequent transition of the construction site.
YHZS75 Mobile concrete mixing plant
Korea YHZS50 Mobile concrete mixing plant
Shanxi YHZS50 Mobile concrete mixing plant
Taiwan YHZS50 Mobile concrete mixing plant
Taiwan YHZS60 Mobile concrete mixing plant
Changchun YHZS50 Mobile concrete mixing plant
The mainframe of YHZS100 concrete mixing plant is JS2000 concrete mixer
. The arc part of the mixing drum is welded. The mixing barrel is equipped with five kinds of lining plates, which are fastened with the countersunk screws and the cylinder; due to the aggregate and the lining different contact conditions, uneven wear of the lining, in order to improve the use time of the lining, can be interchanged; the mixing shaft and the end of the mixing drum are provided with special sealing devices. In order to ensure the quality of the seal, a special oil supply pump is arranged on the end face of the mixer drum.
YHZS100 mobile concrete mixing plant uses PLD3200 concrete batching machine, which can effectively ensure the accuracy of cement, sand, stone and other mix ratios, and further improve the accuracy of weighing by using electronic weighing system. The top panel of the concrete batching machine can be lowered or removed as needed, which can greatly reduce the labor intensity of the loading part and increase the convenience of construction.

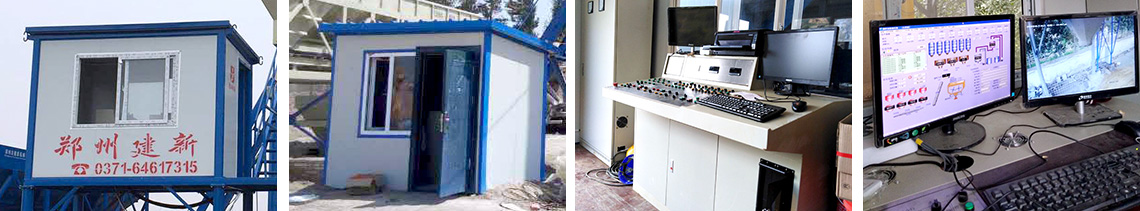

In the control room of the YHZS100 mobile concrete mixing plant at the bottom of the main chassis, a fully automatic control system for the concrete mixing plant is installed. The control system is the same as the fixed concrete mixing plant. In the working state, the control room serves as the front support point of the whole station. When the transfer is transported, the control room is collected and stored in the inner space of the bracket; all the control lines do not need to be disassembled.
The YHZS100 mobile concrete mixing station belt conveying frame is a truss structural member connecting the main chassis and the aggregate ingredient frame, and the belt frame is built in; the main frame, the belt frame and the batching frame are integrated to form the main structure of the entire mobile mixing station.
Bolted cement silo
The bolted type cement silo
of 90 concrete mixing plant is designed and produced for the difficulties of packing and packing of cement silo, difficulty in on-site cylinder making, difficulty in transfer of construction site, and super high and super wide transportation. Cement silos (cement tanks) are in line with industry standards.
The Integral-type cement silo
of 90 concrete mixing plant is a closed tank for storing bulk materials. It is suitable for storing various bulk materials such as grain, cement and fly ash. The tank body is equipped with a material level system and can display the location and amount of the material, the hole device can relieve the excessive compaction caused by the material deposition for too long.
The horizontal cement silo of 90 concrete mixing plant has a cylindrical structure. The bottom is supported by four round tube legs. The whole silo is in the form of steel structure and welded. The top is equipped with dust collector and pressure safety valve. The horizontal cement silo meets the industry standard. The warehouse body is made of steel plate and grooved hoop, and the legs are welded by national standard pipe.
The screw conveyor of 90 concrete mixing plant is not only used in concrete mixing plant (floor), asphalt mixing plant, dry mortar production line to transport cement, fly ash, mineral powder, dry sand, etc., but also widely used chemical, building materials, grain, metallurgy, electric power and other industries transporting powdery, small granular materials. However, this device is not suitable for conveying bulky, compressive, bonded or easy-to-knot materials.
