YHZS50 mobile concrete mixing plant

Field of application: YHZS series mobile concrete mixing plant is a concrete mixing plant designed and developed by Zhengzhou Jianxin for users with short construction period, long construction line and frequent transition. The model is compact, small footprint and easy to install.
Equipment introduction
The YHZS50 mobile concrete mixing plant is a brand new type of ramming and stirring equipment that can be hung and moved. Its structure is novel, unique, compact and simple. With a cradle unit, a variety of operations including aggregate, weighing, conveying, and stirring are integrated, and the overall mobility is excellent. It absorbs many new technologies both at home and abroad in terms of performance. It is accurate and reliable in weighing, even and efficient in weighing, fast and clean in conveying, easy to operate and easy to move, and safe and reliable in hanging. It is the best in mobile construction of highways, bridges, ports, and hydropower projects. The best models.
Main details
Mixing system
The main machine of YHZS50 mobile concrete mixing plant is JS1000 concrete mixer. The mixing system consists of pulley, reducer, open gear, electric motor, mixing drum stirring device and oil supply device. A special sealing device is arranged at the coupling shaft and the two ends of the mixing drum. In order to ensure the quality of the seal, a special oil supply is provided on the end face of the mixer drum.
YHZS50 mobile concrete mixing plant Mixing system
Batching system
The YHZS50 mobile concrete mixing plant uses the PLD1600 concrete batching machine, which can effectively ensure the accuracy of the ingredients and increase the productivity. The mechanism is simple, reliable to use, and easy to operate and maintain. Due to the accurate measurement, the quality of fly ash or lime sand brick can be effectively guaranteed.
YHZS50 mobile concrete mixing plant Batching system
Conveyor system
YHZS50 mobile concrete mixing plant belt conveyor is an ideal high-efficiency continuous transportation equipment. It has the advantages of long conveying distance, large volume and continuous conveying, and it is reliable in operation, easy to realize automation and centralized control, and easy to disassemble.
YHZS50 mobile concrete mixing plant Conveyor system
Control System
The YHZS50 mobile concrete mixing station belt conveying frame is a truss structural member connecting the main chassis and the aggregate ingredient frame, and the belt frame is built in; the main frame, the belt frame and the batching frame are integrated to form the main structure of the entire mobile mixing station.

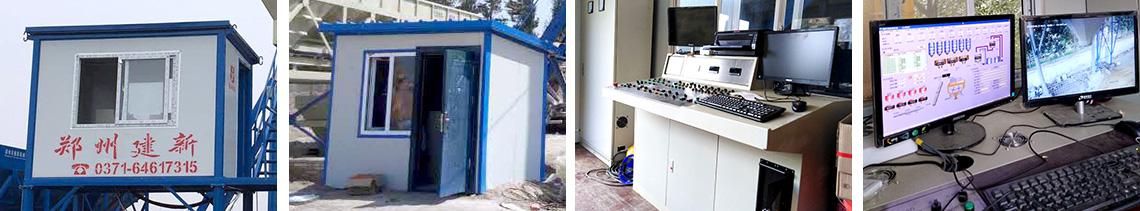

YHZS50 mobile concrete mixing plant Control System
Bolted cement silo
The bolted type cement silo of HZS 25 concrete mixing plant is designed and produced for the difficulties of packing and packing of cement silo, difficulty in on-site cylinder making, difficulty in transfer of construction site, and super high and super wide transportation. Cement silos (cement tanks) are in line with industry standards. The unloading height is 1.96 meters and 4.2 meters, and can also be processed according to user requirements.
The Integral type cement silo HZS 25 concrete mixing plant is a closed tank for storing bulk materials. It is suitable for storing various bulk materials such as grain, cement and fly ash. The tank body is equipped with a material level system and can display the location and amount of the material, the hole device can relieve the excessive compaction caused by the material deposition for too long.
The top of the horizontal cement silo of HZS 25 concrete mixing plant is equipped with an electric dust removal device, which can adsorb suspended particles in the tank and reduce the pollution to the surrounding environment. When there is more dust on the dust collector, the vibration motor on the dust collector can be activated by the electric control system to shake off the accumulated dust, which has the advantages of convenient operation, simple use, safety and reliability.
The screw conveyor of 25 concrete mixing plant adopts high quality steel pipe with good rigidity; double pitch blade reduces the degree of material conveying compression; high quality gearbox, heavy duty design, large torque and low noise; optional universal ball joint, It is convenient to turn the installation and adjustment; it is equipped with high-quality middle and rear bearings and is easy to install;
YHZS50 mobile concrete mixing plant Bolted cement silo

Technical Parameters
project  Theoretical productivity
(m3/h)
Mixer Batching machine Conveyer capacity of belt conveyer
(t/h)
Drag speed
(km/h)
Wheelbase (lateral)
(mm)
Turning radius
(mm)
Total power
(kW)

Unloading height
(m)

YHZS50 50m³/h JS1000 PLD1600

400

15 3400

15

60

4.0

project  Theoretical productivity
(m3/h)
Mixer Batching machine
YHZS50 50m³/h JS1000 PLD1600
