HZS50 concrete mixing plant

Field of application: HZS50 concrete mixing plant is a semi-automatic concrete mixing plant consisting of feeding, batching, mixing, electrical control and steel structure components. It is a compulsory, high-efficiency equipment, can produce plastic, dry hard concrete and other concrete, high production efficiency, widely used in large and medium-sized construction bases.
Equipment introduction
The production line of HZS50 concrete mixing plant developed and constructed by Jianxin Institute in an economically-oriented, economically-oriented society has good environmental protection functions. During the operation of the machine, the powder material handling is carried out in the fully-blocked system, and the powder tanks are efficiently collected. The dust/mist spray method greatly reduces the dust pollution to the environment. At the same time, the concrete mixing station uses sound-attenuating devices for the pneumatic system exhaust and discharge equipment to effectively reduce noise pollution. Secondly, after the transformation and upgrading, the production line occupies less funds, occupies less space, uses less equipment, and can produce high-quality and high-efficiency concrete under the condition of accurate metering.
Jianxin HZS50 concrete mixing plant is a semi-automatic concrete mixing plant consisting of feeding, batching, mixing, electrical control and steel structure components. It is a compulsory, high-efficiency equipment that can produce a variety of concrete such as plastic and dry-hard concrete with high production efficiency. It is widely used in construction of large and medium-sized buildings, roads and bridges, and prefabrication plants for the production of concrete products. It is ideal for the production of commodity concrete. equipment. The mixing system uses JS series twin-shaft forced mixers, which have good homogeneity of mixing concrete, short mixing time, long wearing parts, convenient operation and maintenance, and it adopts the latest design of your idea of electronic weighing, microcomputer control. , Digital display control technology, electronic weighing buffer device and automatic compensation function, high measurement accuracy. The gravel feeding system adopts flat belt or herringbone feeding and is equipped with an inspection walkway, which is an ideal choice for high-quality concrete in the construction industry.
Main details
Mixing system
The main machine of HZS50 concrete mixing plant is JS1000 concrete mixer. The mixing system consists of pulley, reducer, open gear, electric motor, mixing drum stirring device and oil supply device. A special sealing device is arranged at the coupling shaft and the two ends of the mixing drum. In order to ensure the quality of the seal, a special oil supply is provided on the end face of the mixer drum.
HZS50 concrete mixing plant Mixing system
Aggregate batching system
The HZS50 concrete mixing plant uses the PLD1600 concrete batching machine, which can effectively ensure the accuracy of the ingredients and increase the productivity. The mechanism is simple, reliable to use, and easy to operate and maintain. Due to the accurate measurement, the quality of fly ash or lime sand brick can be effectively guaranteed.
HZS50 concrete mixing plant Aggregate batching system
Conveyor system
The brake motor of HZS50 concrete mixing plant drives the reel to rotate through the reducer. The wire rope climbs up along the track of the loading rack through the pulley pulling hopper. When it reaches a certain height, a pair of rollers above the bottom door of the hopper enters the water rail of the loading rack. The bucket door is automatically opened, and the material enters the mixer drum through the feed nozzle.
HZS50 concrete mixing plant belt conveyor is an ideal high-efficiency continuous transportation equipment. It has the advantages of long conveying distance, large volume and continuous conveying, and it is reliable in operation, easy to realize automation and centralized control, and easy to disassemble.
HZS50 concrete mixing plant Conveyor system
Control System
The center of HZS50 concrete mixing plant is the control system. The whole machine is controlled by computer. It can be controlled automatically or manually. It is easy to operate and easy to master. Dynamic panel display makes it easy for users to monitor the operation of each component, and can store and print report data.
HZS50 concrete mixing plant Control System

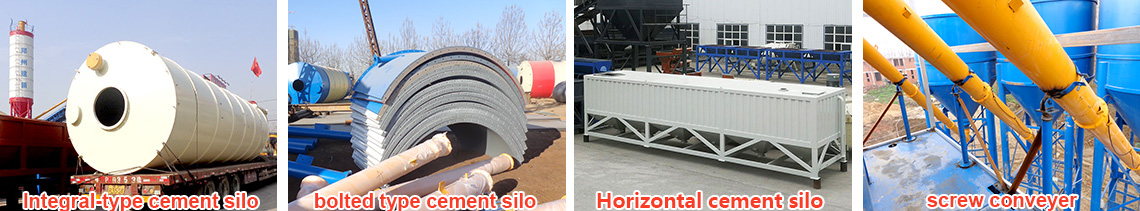

Bolted cement silo
The bolted type cement silo of HZS 50 concrete mixing plant is designed and produced for the difficulties of packing and packing of cement silo, difficulty in on-site cylinder making, difficulty in transfer of construction site, and super high and super wide transportation. Cement silos (cement tanks) are in line with industry standards.
The Integral-type cement silo of 50 concrete mixing plant is a closed tank for storing bulk materials. It is suitable for storing various bulk materials such as grain, cement and fly ash. The tank body is equipped with a material level system and can display the location and amount of the material, the hole device can relieve the excessive compaction caused by the material deposition for too long.
The horizontal cement silo of HZS50 concrete mixing plant has a cylindrical structure. The bottom is supported by four round tube legs. The whole silo is in the form of steel structure and welded. The top is equipped with dust collector and pressure safety valve. The horizontal cement silo meets the industry standard. The warehouse body is made of steel plate and grooved hoop, and the legs are welded by national standard pipe.
The screw conveyor of HZS 50 concrete mixing plant is not only used in concrete mixing plant (floor), asphalt mixing plant, dry mortar production line to transport cement, fly ash, mineral powder, dry sand, etc., but also widely used chemical, building materials, grain, metallurgy, electric power and other industries transporting powdery, small granular materials. However, this device is not suitable for conveying bulky, compressive, bonded or easy-to-knot materials.
HZS50 concrete mixing plant Bolted cement silo
Technical Parameters
project Maximum productivity Mixer model Batcher model Discharge height Working cycle time Weighing accuracy
HZS50 50m3/h JS1000 PLD1600 3800(mm) 72(S)

aggregate

±2%

cement

±1%

water

±1%

Additives

±1%

project Maximum productivity Mixer model Batcher model
HZS50 50m3/h JS1000 PLD1600
